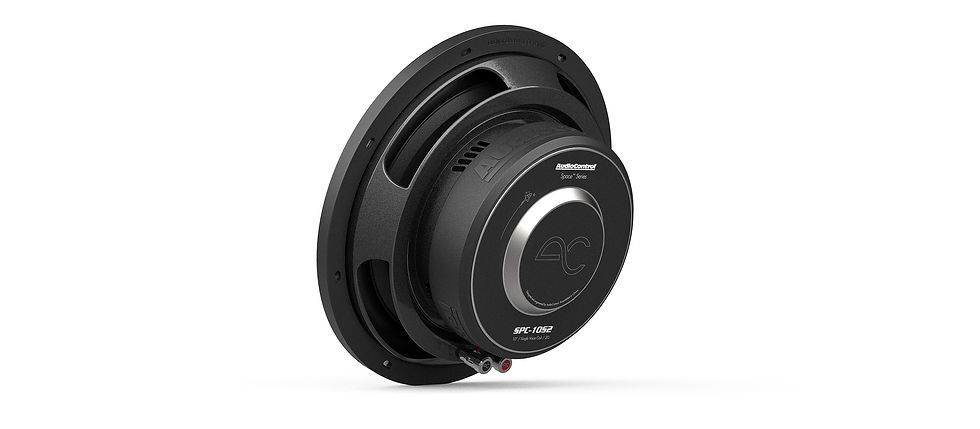

This slim-yet-mighty subwoofer packs a big sound – delivering low frequency in a shallow space. The ultimate solution for deep, rich bass in a sleek, and slim design.
The fiber matrix injection molded polypropylene cone ensures that every note is reproduced to perfection, so you can feel the bass hit. The 3-layer high temp voice coil former means they can handle even the most intense bass without breaking a sweat. And don’t worry about distortion ruining your jams – these subwoofers feature an optimal thermal efficiency design to ensure that your bass stays clean and clear. Not only do these subwoofers sound amazing, they’re also built tough. With their weather-resistant design and removable grille you can enjoy your music even if your vehicle likes to play off-road.
features
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
specifications
thiele/small parameters
Nominal Impedance (Z) 2 ohms
DC Resistance (Re) ]] 1.8 ohms
Resonance Frequency (Fs) 37.48 Hz
Piston Area (Sd) 0.0330 m2
Force Factor (BL) 10.03 T.m
Mechanical Q Factor (Qms) 4.0332
Electrical Q Factor (Qes) 0.4879
Total Q Factor (Qts) 0.4353
Sensitivity 1W/M (SPL) 86.0912
Mechanical Comp (Cms) 0.1554 mm/N
Moving Mass (Mms) 116.0099 g
Linear Excursion (Xmax) . 9 mm
Volume Acoustic Comp (Vas) 23.6364 Ltr/0.834712 cu ft
Reference Efficiency (NO.) 0.25% RMS
Power (Pe) 400 Watts
Frequency Response 20-250 Hz
Voice Coil Diameter 2.5 in/63.5 mm
Displacement 0.045 cu ft/ 1.275 Ltr
in the box:
SPC-10S2, Manual, Warranty
dimensions
- Overall Dimensions: 10.39 in/ 264 mm
- Cut Out Diameter: 9.13 in/ 232 mm
- Mounting Depth: 3.5 in/ 89 mm
- Mounting Height (w/o Grille): 0.71 in / 18mm
- Mounting Height (w/ Grille): 1.22 in / 31mm
ported enclosure
- External Dimensions: 24.00″ W × 14.50″H × 12″D
- Net Internal Volume: 1.40 ft3
- Total Internal Volume: 1.75 ft3
- Gross External Volume: 2.38 ft3
- Material Thickness: 0.75″
- Tuning Frequency: 40 Hz
- Port Area” 22.75 inch2
- Port Inlet: 1.75″W× 13″H
- Port Length: 22.25″
- F3 (Hz): 34
sealed enclosure
- External Dimensions: 26″ W × 14.50″H × 5.00″D
- Net Internal Volume: 0.60 ft3
- Total Internal Volume: 0.65 ft3
- Gross External Volume: 1.09 ft3
- Material Thickness: 0.75″
- F3 (Hz): 60
- Qtc: 0.703
*Enclosure size recommendations do not include driver and/or port displacement
